REXON ERA is a range of full-height motorized turnstile doors designed for indoor and outdoor access control. Available with three (120°) or four (90°) revolving door wings, these turnstile gate doors deliver reliable, bi-directional pedestrian passage with a passage height of 2 100 mm and a passage width of 535–662 mm depending on the variant.
The Rexon ERA series is a range of full-height turnstiles and gatesbuilt around a Fail-Safe motor drive with Go Call function, which ensures smooth, quiet rotation and guarantees free passage in a power-off scenario. All models are delivered in kit form and are fully compatible with indoor, outdoor, and extreme outdoor environments.
Available versions
Application areas:
Customization options:
Technical specifications
Accessories:
The REXON ERA series functions as a security turnstile door backed by a proven fraud-detection algorithm.
Key security mechanisms include anti-pass-back, anti-crawling barrier, anti-reverse rotation during transit, and an action lock that prevents two simultaneous passages. The optional Improper Transit Control (ITC) raises an alarm when an authorisation is received but no passage follows.
Safety features include an anti-heel rubber, anti-pinching construction, voltage-free contact input for fire alarm integration, and emergency egress with free rotor rotation on fire signal. A Fail-Lock configuration is available on request for sites where locking on power loss is required.
The standard finish uses hot-dip zinc-galvanised steel for the rotor and casework. Optional customization includes powder-coated RAL 7040 and stainless steel 304 or 316 for all components. Alternative RAL colours are available on request.
The turnstile revolving doors integrate with any third-party access control system via digital I/O and RS485 interface, with settings programmable via parameters. Main uprights feature a 60 × 60 mm box section for easy surface mounting of card readers and identification terminals.
Not sure which variant of the REXON ERA turnstile security door fits your site? Our specialists help you select the right configuration, from single-lane indoor installations to multi-lane extreme outdoor deployments. Contact us to arrange a consultation.

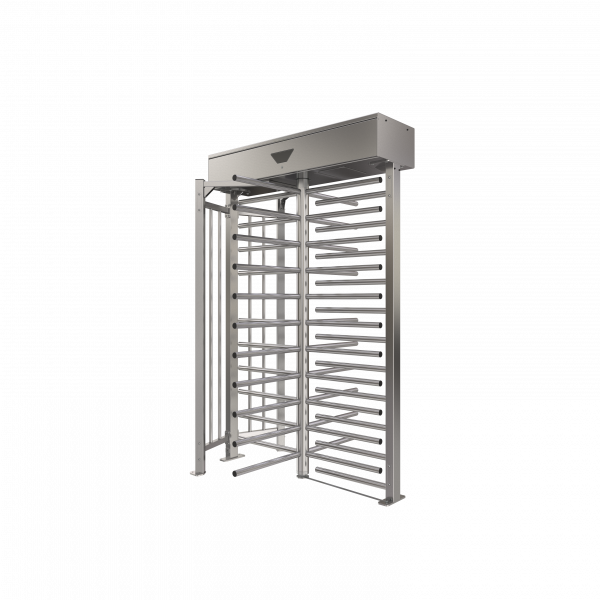

REXON ERA 4 features a four-wing rotor with 90° rotation, providing silent, smooth and controlled passage in one or both directions.
Its highly reliable and robust design is suitable for indoor and outdoor applications, including construction sites, stadia, ports and harbours, government buildings and embassies.

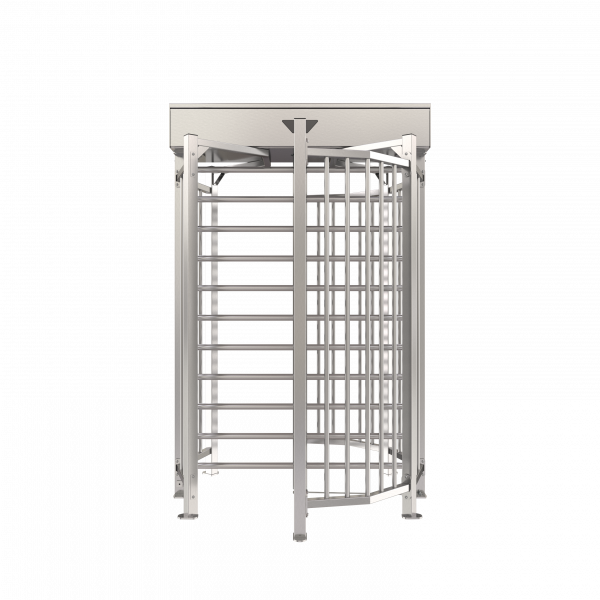

REXON ERA 3/4 FULL combines the proven REXON ERA design with a full side-frame construction for a more enclosed and robust entrance solution.
The FULL version is available with either a three-wing rotor with 120° rotation or a four-wing rotor with 90° rotation. It is suitable for indoor and outdoor applications.

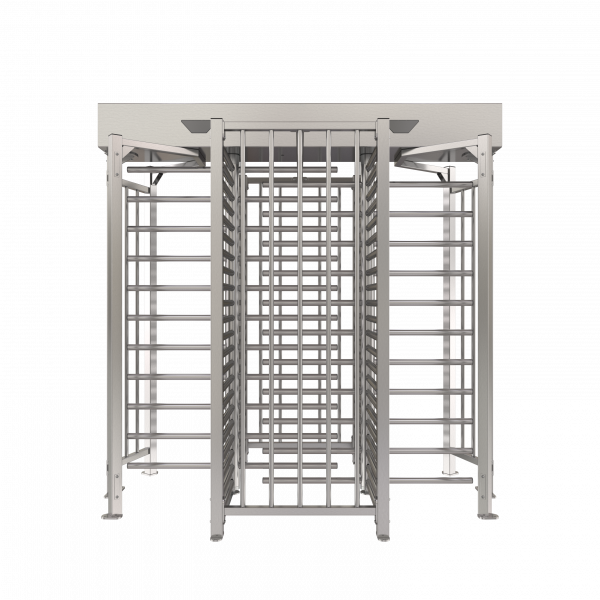

REXON ERA 3/4 DUO combines two lanes in one compact double-interlocking unit, providing controlled access while reducing the overall installation footprint.
The DUO version is available with either three-wing rotors with 120° rotation or four-wing rotors with 90° rotation.

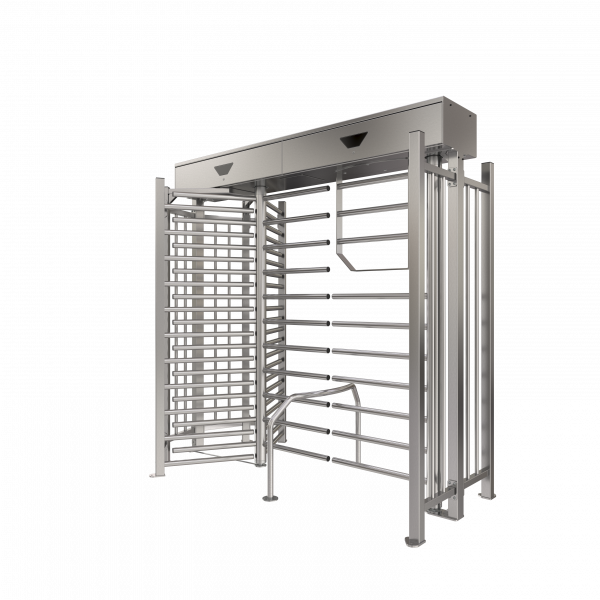

REXON ERA 3 GATE-BIKE is configured for secure pedestrian access with an integrated bicycle gate for added versatility.
Built with the same heavy-duty construction as the REXON ERA, it includes a low-maintenance motor drive and an anti-corrosive finish. It is designed for harsh outdoor environments, particularly perimeter locations where bicycle access is essential, while remaining equally suitable for indoor applications.

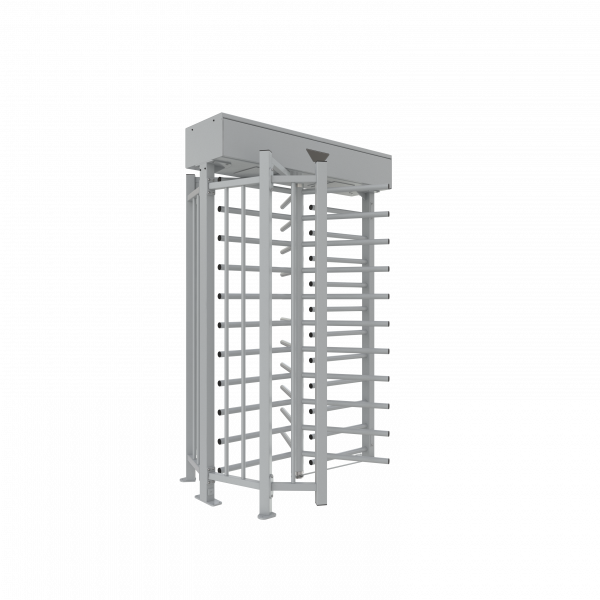

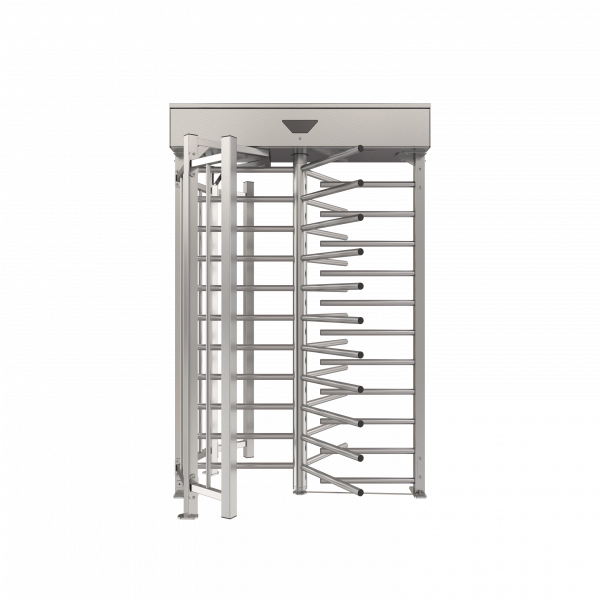

REXON ERA 3 features a three-wing rotor with 120° rotation, providing smooth and controlled passage in one or both directions.
Its proven and robust design is suitable for indoor and outdoor applications, including construction sites, stadia, ports and harbours, government buildings and embassies.
